FROM FEASIBILITY TESTING TO SMALL SCALE PRODUCTION
VTA offers glass laboratory units to determine feasibility of the distillation process by only using small product amounts. These units are offered as single- and multi-stage wiped film or short path distillation plants.

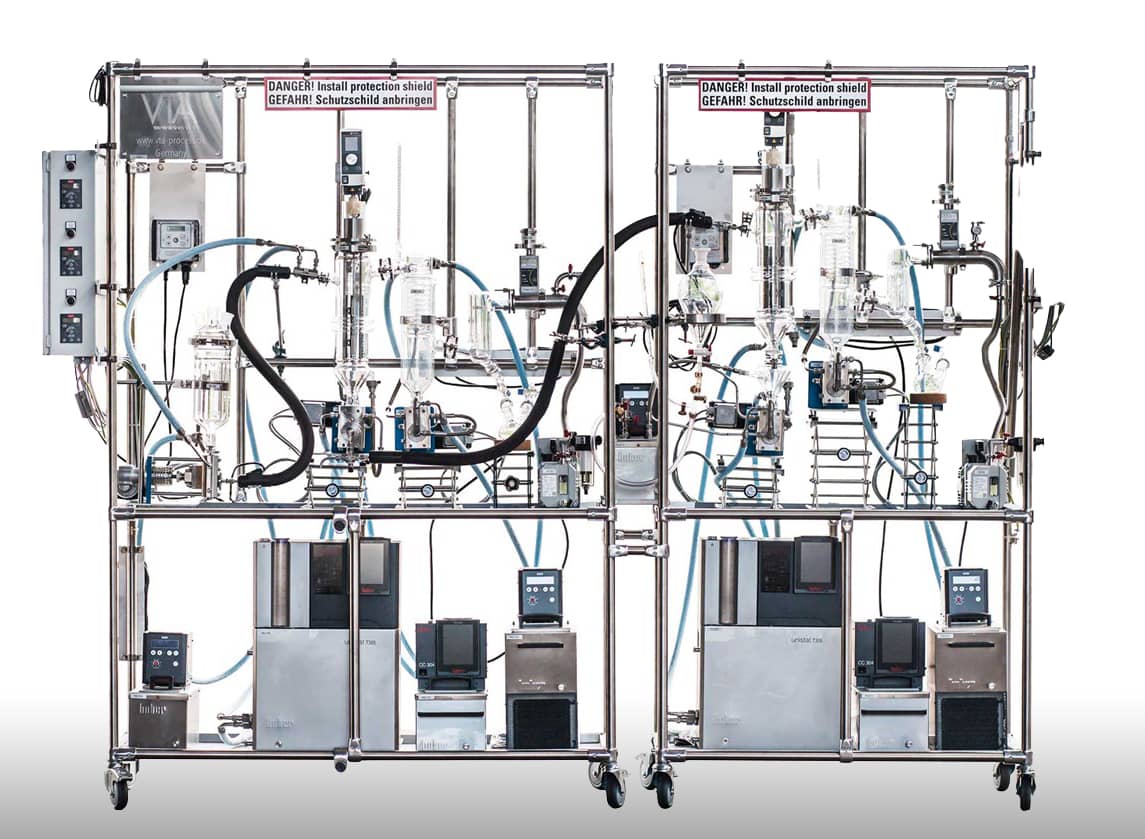

The key components in lab scale systems are fabricated in borosilicate glass. This enables observation of product properties like foaming, fouling and film distribution on the heated shell during distillation. Glass plants equipped with continuous feed and discharge systems allow the production of sample amounts up to several kilograms.
Performance and Design Features
- Capacity: 20 g/h up to 5 kg/h
- Melting points: up to 150 °C
- Operating pressure:
- Wiped Film Evaporator: down to 0.1mbara
- Short Path Evaporator: down to 0.001 mbara
- Heating temperature: max. 350 °C
- Standard evaporator size: 0.01 m² - 0.15 m² (Larger evaporators on request)
- Material of construction: borosilicate glass, stainless steel and special alloys
Options
- Feed – Gear Pump, Membrane Pump, Dosing Vessel
- Evaporator – Short Path, Wiped Film or Horizontal Thin Film Evaporator, Wiped Film Evaporator + Rectification Column
- Vacuum System – Rotary Vane Pump, Oil Diffusion Pump, Membrane Pump
- Discharge – Gear Pumps, Flasks, Triple Split Distributors, Intermediate Buffer Vessels
- Electrical Equipment – Manual Operation (Standard), PLC Control with HMI
- Skid – Moveable Cart, Installation on Bench Top
- Configurations – Single Stage or Multi-Stage
Standard Sizes
Type
Heated Surface
Feed Amount
Required Crude Amount
[m²]
[kg/h]
[kg]
Thin Film / Wiped Film
VDL 70-4
0.04
0.10-1.50
1.0
VDL 70-7
0.07
0.20-2.00
2.0
VDL 125-15
0.15
0.30-5.00
5.0
Horizontal Thin Film
VDLH 70-4
0.04
0.10-1.50
1.0
VDLH 70-7
0.07
0.10-2.00
1.0
Short Path
VKL 38-1
0.01
0.02-0.30
0.1
VKL 70-4
0.04
0.10-1.20
2.0
VKL 70-5
0.05
0.10-1.50
2.0
VKL 125-10
0.10
.30 – 3.00
4.0
VKL 125-15
0.15
0.30-5.00
5.0
