LOWEST DISTILLATION PRESSURE FOR HIGH BOILING AND THERMAL SENSITIVE PRODUCTS
Short path - or molecular - distillation allows the evaporation of heat sensitive products at operating pressures down to 0.001 mbar at short residence times.

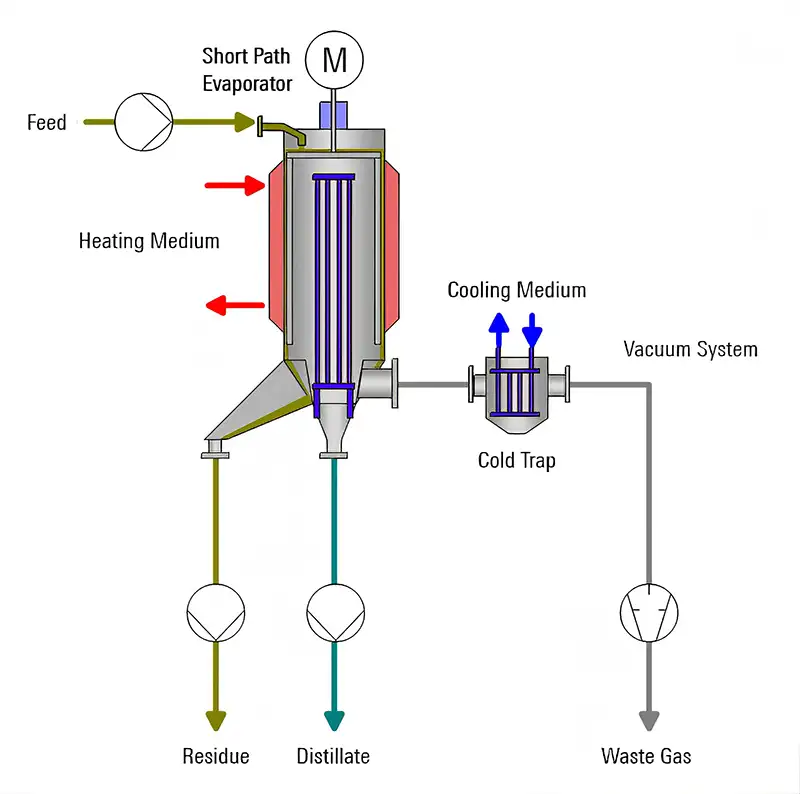

On a cylindrical heating jacket the product is distributed by a wiping system. The wipers ensure even distribution and create turbulence that enhances the distillation. The evaporated fraction is condensed on a condenser installed in the center of the evaporator. This arrangement minimizes the path from evaporation to condensing surface and achieves the lowest possible pressure drop. The high vacuum and the short residence time prevent thermal stress and decomposition of the processed products.
Performance Features
- Capacity: 0.1 kg/h up to several t/h
- Operating pressure:
min. 0.001 mbar - Evaporation ratio: max. 95%
- Residence time: short, to minimize thermal degradation
- Viscosity:
max. 20.000 mPas - Melting points: max. 200°C
- Distillation process: fully continuous
Typical Applications
Fine vacuum distillation of thermal sensitive products such as
- PE wax
- 3 MCPD, GE, MOSH, MOAH removal from vegetable oils
- Monoglyceride concentration
- Used oil recovery
- Removal of POP's from fish oils
- EPA and DHA concentration
- Epoxy resins
- Lanolin alcohols, lanolin
- Isocyanates (TDI, MDI, XDI, HDI)
- Devolatilization of silicone oil
- Low Free Polyurethane Prepolymer
Design Features
- Heat exchange surface: 0.04 m² - 80 m²
- Available scales: Laboratory, pilot and industrial
- Material of construction: Glass, stainless steel, special alloys, glass-lined
- Wiping systems: Wall touching, able to limit fouling
- Operating temperatures: up to 400°C
- Options: GMP designs are possible

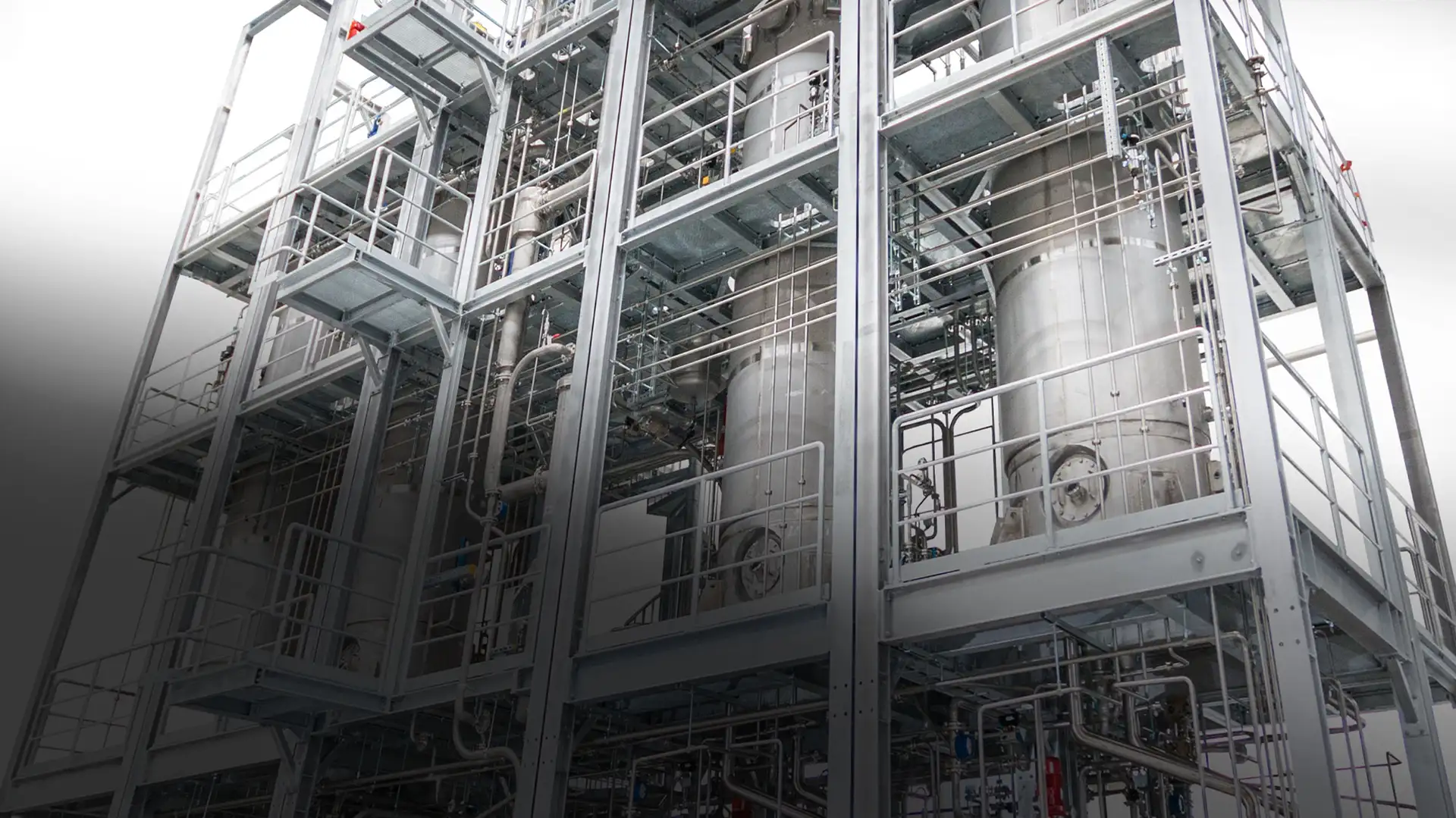

VTA provides package units in laboratory, pilot, and industrial scales.
These package units, comprising skid-mounted, pre-assembled systems, cater to wiped film and short-path distillation, rectification, and thin film drying processes.
All essential components such as evaporators, condensers, vessels, and piping are crafted in state-of-the-art manufacturing facilities by highly skilled personnel, either by VTA or within the STREICHER group. Our comprehensive engineering services are entirely conducted in-house at VTA, ensuring seamless project execution by minimizing interfaces.
