Vapour Booster Pump with increased efficiency and optimized performance
VTA’s new “V-Boost” offers a high suction capacity and excellent throughput, even at very low operating pressures. The Vacuum Pump ensures quick pump-down times for improved efficiency.

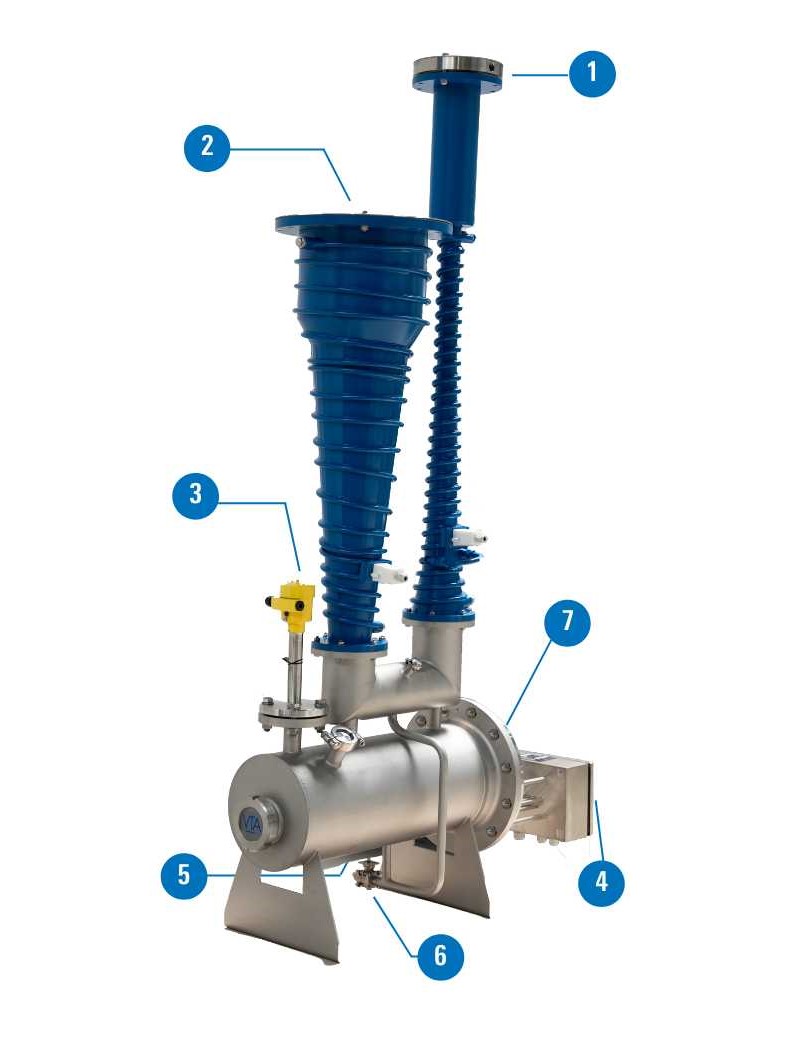

Set-up
- Pressure side
- Suction side
- Level switch
- Cartridge heater flange
- Boiler
- Drain
- Main boiler flange for easy access
Technical Data
- Cooling system requirements: Max. 35 °C supply – 500 l/h Cooling water or water/glycol
- Nominal pumping speed: 15.000 m³/h
- Pre vacuum pressure required: ≤ 2 mbara
- Design temperature: -10 / 250 °C
- Design pressure: -1 / +0.5 bar (process side)
- Operating fluid: Suitable for the process
- Filling volume: Min. 8 l – max. 16 l
- Ultimate pressure: U2E-5 mbara depending on operating fluid

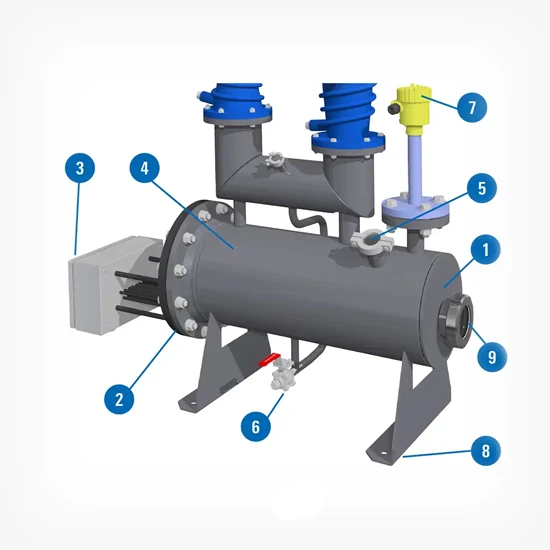

Advantages
- Full stainless steel boiler
- Easy-accessible boiler for cleaning
- Cartridge-type heating elements, easily removable
- Boiler easily isolatable to minimize heat losses
- Easy refilling
- Full drainability at the lowest position of the boiler
- Low level switch in boiler vessel
- Accurate bracket support
- Sight glass to enable inspection of boiler and booster fluid
ATEX version available! Compact design!

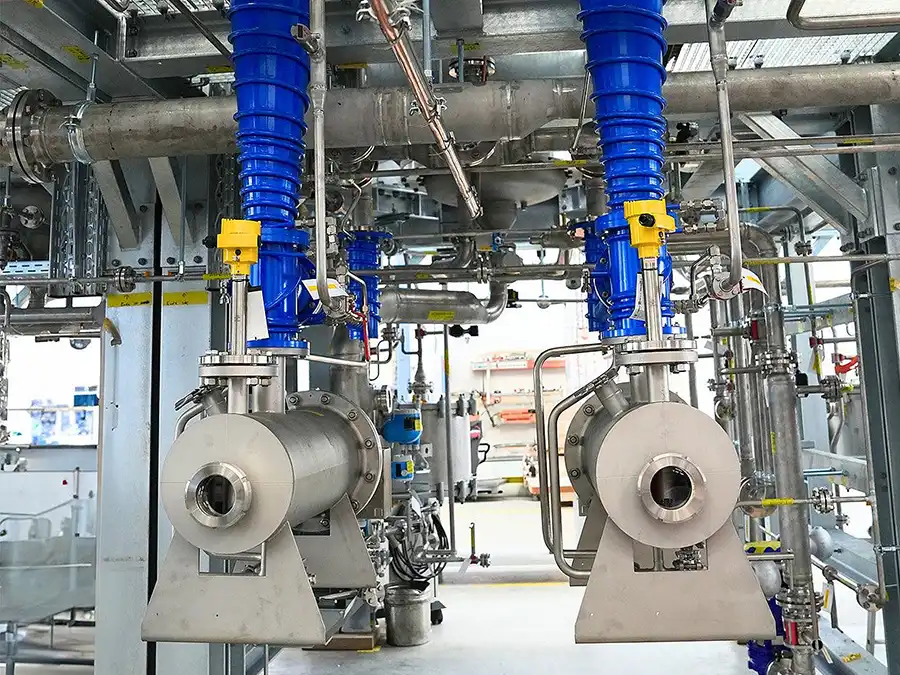

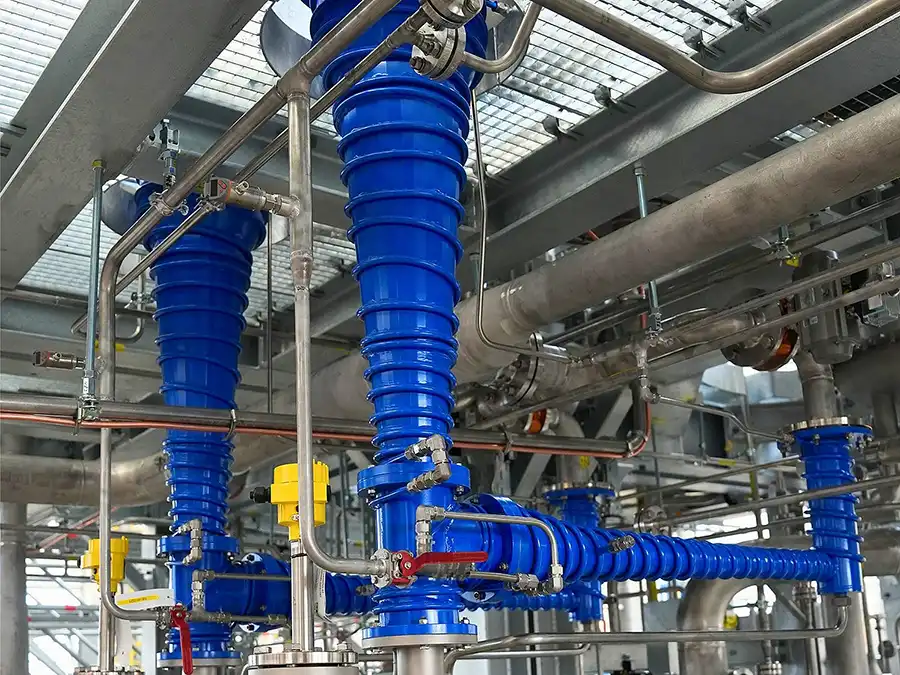

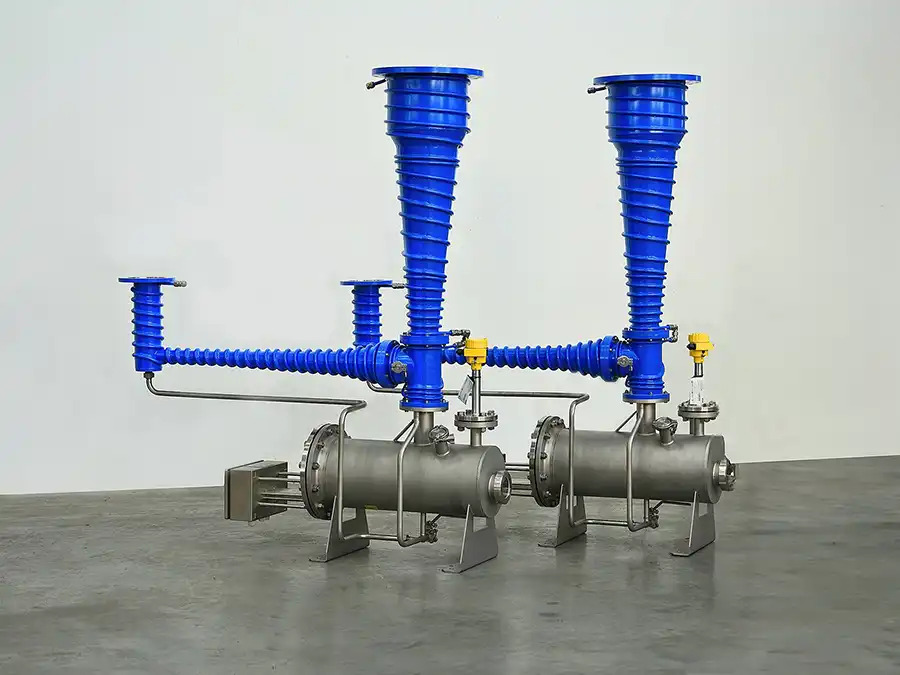

Available as retro-fit model for existing installations
