High evaporation rates within a single process path
Wiped Film and Thin Film evaporation enable the processing of heat-sensitive, fouling, and viscous products.

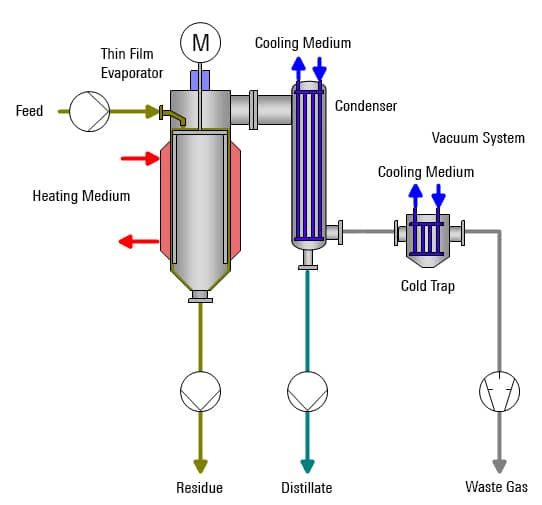

Wiped Film and Thin Film Evaporators comprise a cylindrical heating jacket and an inner rotating wiper system, dispersing the product onto the heating jacket as a thin and turbulent film. The turbulence within the wiped film enhances heat and mass transfer, achieving a high evaporation rate with short residence times, often within a single processing pass. The separated vapors are either condensed on an external condenser or further separated in a fractional column.
Performance Features
- Capacity: 0.1 kg/h up to several t/h
- Operating pressure: down to 1 mbara
- Turn down ratio: 95 % and higher
- Viscosity: 75.000 mPas or more at operating temperature
- Residence time:
less than one minute - Treatment of fouling products: possible
- Combination of fractionation column: possible
- Distillation process: fully continuous
Typical Applications
Processing Of Thermal Sensitive or Viscous Products Such As:
- BDO (Butanediol)
- Lecithin
- Whey
- Biopolymers
- Used oil
- Isocyanates (TDI, HDI)
Design Features
- Heat exchange surface: 0.04 m² - 103 m²
- Available scales: laboratory, pilot and industrial
- Material of construction: glass, stainless steel, special alloys, glass-lined
- GMP and hygienic version: available
- Shell and rotor: straight or tapered
- Rotors: Various styles available depending on processing needs
Are you interested in VTA Wiped Film or Thin Film Evaporators?
Testing at VTA test center?

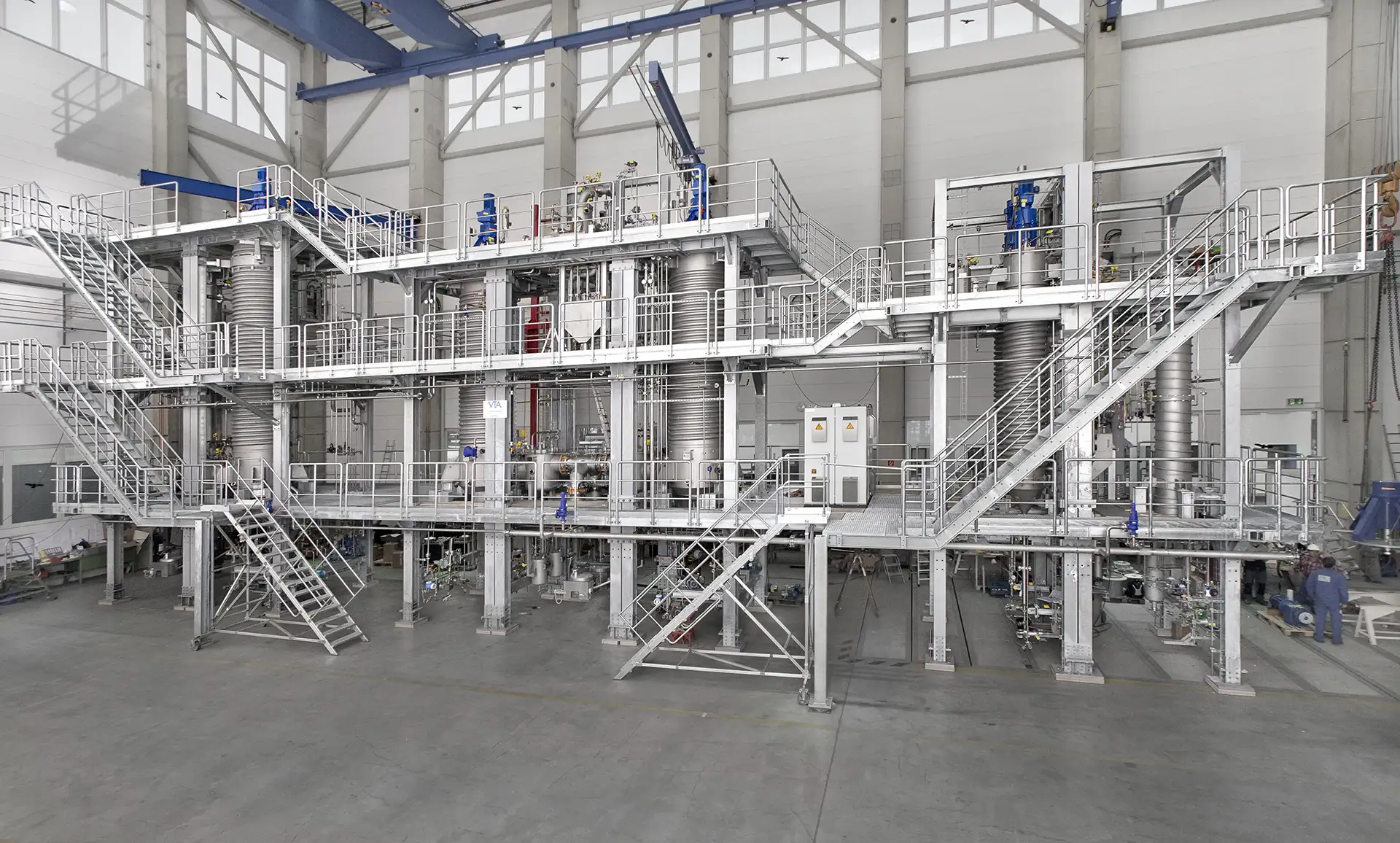

VTA provides package units in laboratory, pilot, and industrial scales.

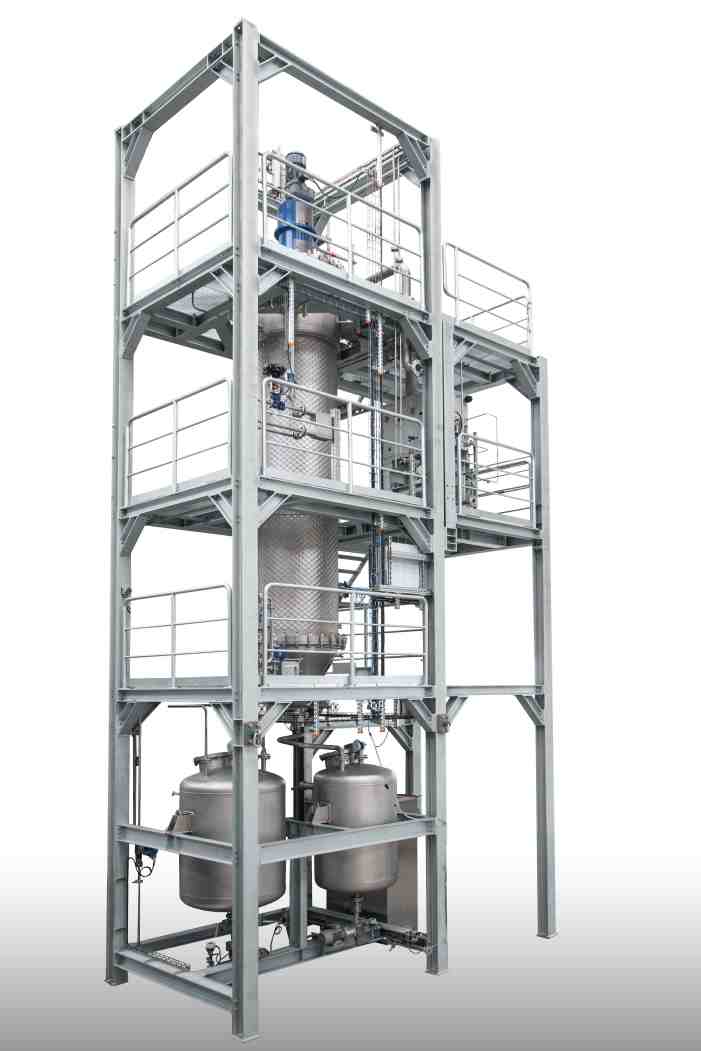

VTA delivers Package Units in laboratory, pilot and industrial scale. Package units are skid mounted, pre-assembled systems for wiped film and short path distillation, rectification and thin film drying.
All essential components such as evaporators, condensers, vessels, and piping are crafted in state-of-the-art manufacturing facilities by highly skilled personnel, either by VTA or within the STREICHER group. Our comprehensive engineering services are conducted entirely in-house at VTA, ensuring seamless project execution by minimizing interfaces.
